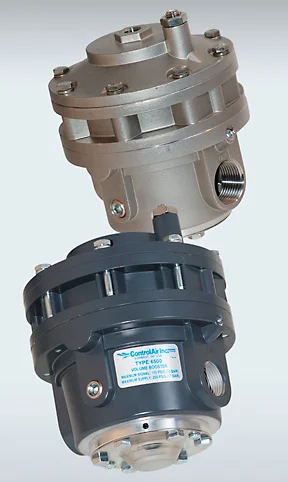

New Large Flow Capacity 6500 & 6600 Volume Boosters

  • Aluminum or 316 stainless steel construction.
  • Integral adjustable bypass valve eliminates “hunting” by allowing the booster to directly respond to small incremental signal changes without opening the primary valve.
  • High flow capacity allows up to 400 scfm (11,320 Nl/min) for rapid actuator stroking.

T200 PRECISION AIR RELAY


Pilot operated, multi-stage 1:1 relay with positive and negative biasing adjustment capability


T250 LOCK-UP AIR RELAY


Reliability for fail in place applications of control valves when air supply drops below acceptable pressure levels.



T600 VOLUME BOOSTER


Utilizes a signal pressure to produce an output pressure with high flow capacity, that can be amplified. Signal to output ratio's available include 1:1, 1:2, 1:3 and 1:6.


T650 POSITIVE BIAS RELAY


Signal operated regulator that provides an output pressure that is the sum of the input signal pressure plus a preset adjustable bias. Used to convert a low flow signal to the higher flow (up to 50 scfm) requirements of an operating system.


T6000 VOLUME BOOSTER


High flow capacity in a rugged casing.


MITE 70 SNAP-ACTING PNEUMATIC RELAY


Trips to vent one control signal while simultaneously locking up another


MITE 71 SNAP-ACTING PNEUMATIC RELAY


Automatically selects the higher or lower of two input signals


MITE 74 SNAP-ACTING PNEUMATIC RELAY


Combines a Mite 70 with a precision 3-way valve


MITE 85 SNAP-ACTING PNEUMATIC RELAY



Our most versatile circuitry for sophisticated applications
